Model |
Model |

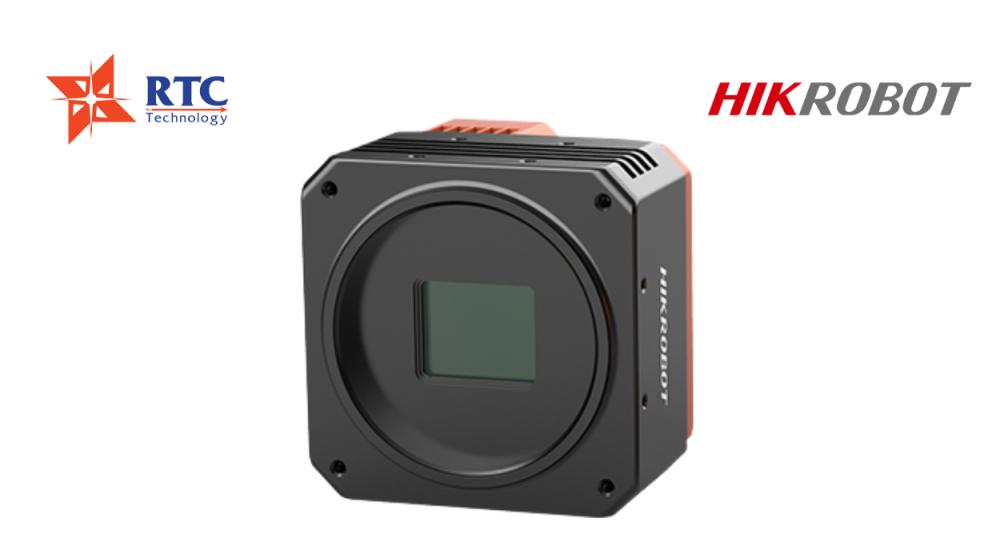

MV-CH080-60GC |
|
Type |
8 MP, 4/3" CCD, GigE Area Scan Camera |
|
Camera |
Sensor type |
CCD, global shutter |
|
Sensor |
KAI08051 |
|
Pixel Size |
5.5 µm × 5.5 µm |
|
Sensor size |
4/3" |
|
Resolution |
3296 × 2472 |
|
Max. Frame Rate |
14 fps |
|
Dynamic range |
66 dB |
|
SNR |
40 dB |
|
Gain |
0 dB to 20 dB |
|
Exposure time |
50 μs to 1 s |
|
Shutter mode |
Off/Once/Continuous exposure mode |
|
Mono/Color |
Color |
|
Pixel format |
Mono 8/10/12, Bayer GR 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
|
Binning |
Not support |
|
Decimation |
Not support |
|
Reverse image |
Supports horizontal reverse image output |
|
Image buffer |
128 MB |
|
Electrical features |
Data Interface |
GigE |
|
Digital I/O |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
|
Power supply |
Switching power supply or power adapter of 12 VDC, 2 A |
|
Power consumption |
< 12 W@12 VDC |
|
Mechanical |
Lens mount |
M58*0.75, optical back focal length 11.48 mm, supports C-mount or F-mount via lens adapter |
|
Dimension |
M58-mount with fan: 74 mm × 74 mm × 74.3 mm (2.9" × 2.9" × 2.9")
M58-mount without fan: 74 mm × 74 mm × 47 mm (2.9" × 2.9" × 1.9") |
|
Weight |
M58-mount with fan: < 450 g (1.0 lb.)
M58-mount without fan: < 410 g (0.9 lb.) |
|
Ingress protection |
IP40 (under proper lens installation and wiring) |
|
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
Humidity |
20% to 95% RH, non-condensing |
|
General |
Client software |
MVS or third-party software meeting with GigE Vision Protocol |
|
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|
Compatibility |
GigE Vision V1.2, GenICam |
|
Certification |
CE, FCC, RoHS, KC |
