Model |
Model |

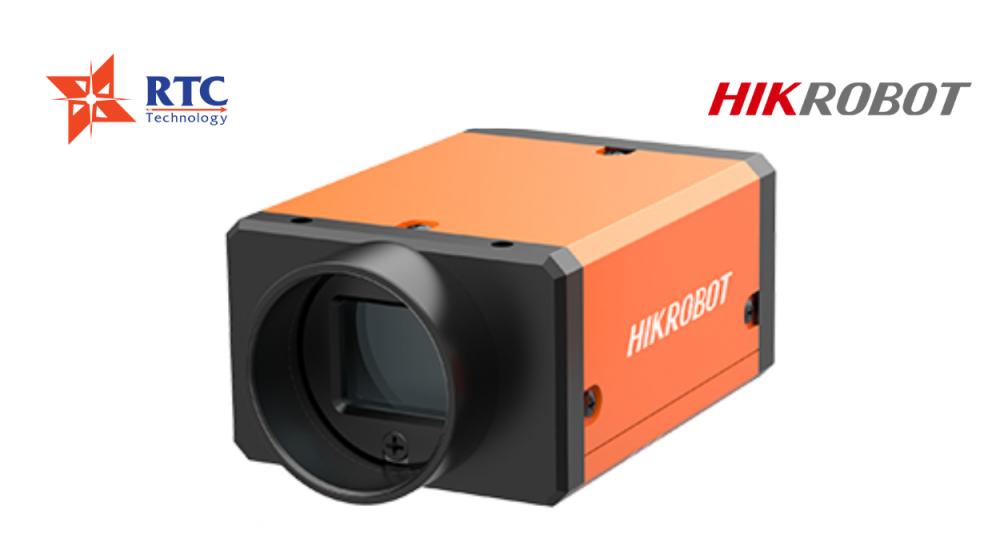

MV-CH089-10GC |
Type |
8.9 MP, 1" CMOS, GigE Area Scan Camera |
Camera |
Sensor type |
CMOS, global shutter |
Sensor |
IMX267 |
Pixel Size |
3.45 µm × 3.45 µm |
Sensor size |
1" |
Resolution |
4096 × 2160 |
Max. Frame Rate |
13 fps |
Dynamic range |
72.5 dB |
SNR |
40.1 dB |
Gain |
0 dB to 20 dB |
Exposure time |
UltraShort exposure mode: 1 μs to 14 μs
Standard exposure mode: 15 μs to 10 s |
Shutter mode |
Off/Once/Continuous exposure mode |
Mono/Color |
Color |
Pixel format |
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8, BGR8 |
Binning |
Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
Decimation |
Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
Reverse image |
Supports horizontal and vertical reverse image output |
Image buffer |
128 MB |
Electrical features |
Data Interface |
GigE |
Digital I/O |
6-pin Hirose connector provides power and I/O, including opto-isolated input x 1(Line0), opto-isolated output x 1(Line1), bi-directional non-isolated I/O x 1 (Line2) |
Power supply |
12 VDC, supports PoE |
Power consumption |
Typ. 3.8 W@12 VDC |
Mechanical |
Lens mount |
C-Mount |
Dimension |
44 mm × 29 mm × 50 mm (1.7" × 1.1" × 2.3") |
Weight |
< 100 g (0.2 lb.) |
Ingress protection |
IP30 (under proper lens installation and wiring) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 80% RH, without condensation |
General |
Client software |
MVS or third-party software meeting with GigE Vision Protocol |
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
Compatibility |
GigE Vision V2.0, GenlCam |
Certification |
CE, FCC, RoHS, KC |
